Boiler Burner

PRODUCTS

锅炉燃烧器

桑福来的燃烧即安全又高效

Boiler Burner

什么是辅助锅炉燃烧器?

锅炉燃烧器指的是船用锅炉上使用的燃烧器,是产生"火焰"的装置,航行与停泊时都会使用到。为实现顺利航行,优质的燃烧器是必不可少的。

燃烧器作用是产生蒸汽,蒸汽主要用于加热燃料,可将燃料加热到足够运行的燃烧温度、清洗储罐、调整空调、加热生活用水、以及操纵油船的货油泵。

桑福来燃烧器的特色是转杯式结构,不只是硬件,而是硬件与软件全方面的结合。因此本公司的燃烧器,可对现场要求提供综合性解决方案,而且硬件与软件的结合可提供最高的燃烧性能。

特点优势

  • 01稳定燃烧

    稳定性是本产品的优势之一。本产品使用燃料的范围很广,针对大范围的燃料都可以实现燃烧器的持续运行。影响燃烧的重要因素,如燃烧量、喷雾空气压力、喷雾空气量、燃烧空气量、转杯旋转数,都由软件控制保持稳定燃烧。

  • 02低油压

    喷雾压力仅为0.3 - 0.5Mpa,一旦漏泄燃油也不会飞溅增加安全性。所以低油压可以降低管道的消耗速度,从而减少维修保养频率。

  • 03防止燃料阻塞

    桑福来燃料喷射法可以防止燃料阻塞,这是因为它不是通过喷头喷射,而是使用转杯离心力喷射燃料。

  • 04结构简单

    桑福来燃烧器的燃烧结构是主轴直接连接到马达上,风机独立设置。这种结构减少了必要的配件与零件数量,同时实现更高质高效的燃烧控制系统。

05支持大范围燃油粘度

  • 桑福来转杯式燃烧器可以使用700-1.5cSt粘度的燃料,在更换了粘度差距很大的燃料的情况下,也能保持稳定燃烧。
  • 燃料切换不需改变喷头、油泵等硬件设定。
  • 出入排放控制的区域(ECA)时,HFO与MGO的切换也能保持安全运行。这也是转杯式燃烧器的优点之一。

06减轻维修保养负担

  • 将合页式门拉开,就能拉出燃烧器主部。
  • 减少零配件,实现轻量化,从而减轻维修保养的负担。
  • SDR350 -1500系列的管道系统是,将燃料阀、调量阀都安装到同一个模块,实现了配件一体化。因此减少了必要的消耗性配件与附件数量,减轻维修保养的负担。

07省燃料与环保

  • 调节比率很大

    桑福来的大调节比不浪费锅炉热交换能量,使得优化燃烧量。按照蒸汽消费需求,调节燃油消耗量。

  • 燃烧空气量优化

    将锅炉内的热能量损失降至最低,自动调节燃烧空气量,从而不浪费燃油!

  • 在更高层次上高效运行

    安装Emulsion Combustion System(乳化燃烧系统)下实现更高效燃烧。(*选项服务)

    查看更多

08控制箱

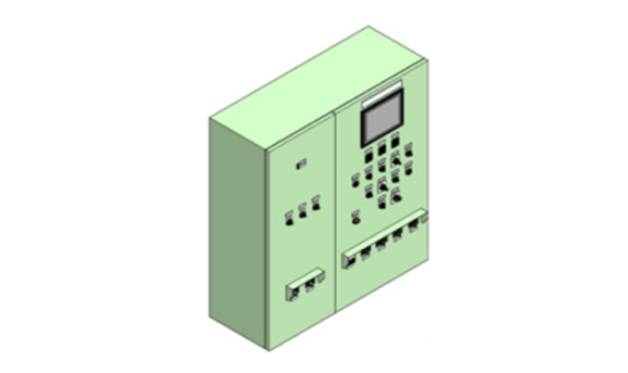

控制箱上安装的触摸屏,提高燃烧器的可用性,并具备数据记录功能系统,一旦出现故障船员也能迅速地把握现场状况。



陆地支援
  • 一旦故障等问题发生时,根据船员将主页拍摄照片邮到桑福来邮箱,我们可以掌握到现场状况,从而我们能建议处理方法。
  • 按照数据记录功能,工程师能确认故障发生前后的装置状态。
触摸屏显示故障处理指南
  • 一旦发生非正常停机,打理指南在触摸屏上显示,本船排除对应比较容易化。

燃烧器阵容

  • SDR-1
  • SDR-1.5
  • SDR-2
  • SDR-2.5
  • SDR-350
  • SDR-500
  • SDR-700
  • SDR-1000
  • SDR-1500
  • R-25
  • R-40
Combustion Capacity 45-100 kg/h
Fuel Oil Heavy Oil (Viscosity 700mm2/s at 50℃), MGO, DMO, Waste Oil
Fuel Oil Pressure 0.15 MPa
Automatic Control System ON/OFF Control
Cup Drive System Motor Direct Drive System
Weight(≒kg) 230 kg
Boiler Capacity ~1.2t
Recommended Vessel Type Bulk Carrier
Combustion Capacity 50-150 kg/h
Fuel Oil Heavy Oil (Viscosity 700mm2/s at 50℃), MGO, DMO, Waste Oil
Fuel Oil Pressure 0.3 MPa
Automatic Control System ON/OFF Control
Cup Drive System Motor Direct Drive System
Weight(≒kg) 230 kg
Boiler Capacity 1.2~2t
Recommended Vessel Type Container, PCC, VLGC
Combustion Capacity 50-200 kg/h
Fuel Oil Heavy Oil (Viscosity 700mm2/s at 50℃), MGO, DMO, Waste Oil
Fuel Oil Pressure 0.3 MPa
Automatic Control System ON/OFF & HIGH/LOW Control
Cup Drive System Motor Direct Drive System
Weight(≒kg) 230 kg
Coiler Capacity 2~2.5t
Recommended Vessel Type Container, PCC
Combustion Capacity 50-250 kg/h
Fuel Oil Heavy Oil (Viscosity 700mm2/s at 50℃), MGO, DMO, Waste Oil
Fuel Oil Pressure 0.3 MPa
Automatic Control System ON/OFF & HIGH/LOW Control
Cup Drive System Motor Direct Drive System
Weight(≒kg) 230 kg
Boiler Capacity 2.5~3t
Recommended Vessel Type Container
Combustion Capacity 50-350 kg/h
Fuel Oil Heavy Oil (Viscosity 700mm2/s at 50℃), MGO, DMO, Waste Oil
Fuel Oil Pressure 0.3 MPa
Automatic Control System ON/OFF & Proportional Control
Cup Drive System Motor Direct Drive System
Weight(≒kg) 600 kg
Boiler Capacity 3~4.5t
Recommended Vessel Type Container
Combustion Capacity 50-500 kg/h
Fuel Oil Heavy Oil (Viscosity 700mm2/s at 50℃), MGO, DMO, Waste Oil
Fuel Oil Pressure 0.3 MPa
Automatic Control System ON/OFF & Proportional Control
Cup Drive System Motor Direct Drive System
Weight(≒kg) 600 kg
Boiler Capacity 4.5~6t
Recommended Vessel Type Container
Combustion Capacity 70-700 kg/h
Fuel Oil Heavy Oil (Viscosity 700mm2/s at 50℃), MGO, DMO, Waste Oil
Fuel Oil Pressure 0.3 MPa
Automatic Control System ON/OFF & Proportional Control
Cup Drive System Motor Direct Drive System
Weight(≒kg) 600 kg
Boiler Capacity 6~9t
Recommended Vessel Type Passenger
Combustion Capacity 100-1000 kg/h
Fuel Oil Heavy Oil (Viscosity 700mm2/s at 50℃), MGO, DMO, Waste Oil
Fuel Oil Pressure 0.3 MPa
Automatic Control System ON/OFF & Proportional Control
Cup Drive System Motor Direct Drive System
Weight(≒kg) 600 kg
Boiler Capacity 9~12t
Recommended Vessel Type Product/Chemical Tanker
Combustion Capacity 150-1500 kg/h
Fuel Oil Heavy Oil (Viscosity 700mm2/s at 50℃), MGO, DMO, Waste Oil
Fuel Oil Pressure 0.3 MPa
Automatic Control System ON/OFF & Proportional Control
Cup Drive System Motor Direct Drive System
Weight(≒kg) 600 kg
Boiler Capacity 12~20t
Recommended Vessel Type Product/Chemical Tanker
Combustion Capacity 250-2500 kg/h
Fuel Oil Heavy Oil (Viscosity 700mm2/s at 50℃), MGO, DMO, Waste Oil
Fuel Oil Pressure 0.4 Mpa
Automatic Control System ON/OFF & Proportional Control
Cup Drive System Belt Drive System
Weight(≒kg) 850 kg
Boiler Capacity 20~35t
Recommended Vessel Type Product Tanker, VLCC
Combustion Capacity 400-4000 kg/h
Fuel Oil Heavy Oil (Viscosity 700mm2/s at 50℃), MGO, DMO, Waste Oil
Fuel Oil Pressure 0.4-0.5 Mpa
Automatic Control System ON/OFF & Proportional Control
Cup Drive System Belt Drive System
Weight(≒kg) 1200 kg
Boiler Capacity 35~50t
Recommended Vessel Type VLCC

配件选项

  • Emulsion Combustion System

  • Sunflame Smart Support System

  • MGO Switch-Over System

  • Level Sensor Check-Up System
